Item | Description | |
Configuration
| CPU | S905X3 Quad core ARM Cortex-A55 1.9GHz |
GPU | Dvalin MP2 Up to 850MHz | |
RAM | Original DDR4 2GB (4GB Optional) | |
ROM | Original eMMC 16GB (32GB Optional) | |
Expand Memory | Micro-SD Card (support 64GB) | |
Ethernet | 1000M LAN | |
Bluetooth | Bluetooth 4.0 | |
Wi-Fi | IEEE 802.11 ac/b/g/n 2.4G+5G | |
Communication | Video/Picture Decoding | -VP9 Profile-2 up to 4K*2K-H.265 HEVC MP-10@L5.1 up to 4K*2K@-H.264 AVC HP@L5.1 up to 4K*2K-H.264 MVC up to 1080P@60fps-MPEG-4 ASP@L5 up to 1080P@60fps(ISO-14496)-WMV/VC-1 SP/MP/AP up to 1080P@60fps-AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps-MPEG2 MP/HL up to 1080P@60fps-MPEG1 MP/HL up to 1080P@60fps-RealVideo 8/9/10 up to 1080P@60fps-Low latency 1080P H.264 60fps encoder-HDR10+ and HLG HDR Video Processing-Supports mkv.mpg.wmv.mpeg.dat.avi.mov.iso.mp4.rm and JPG File format
|
Video Encoding | H.264, H.265 encoder to 1080P&60fps with low latency | |
Audio Format | Low power MediaCPU with DSP audio processing | |
Support MP3,AAC,WMA,RM,FLAC,OGG and programmable with | ||
7.1/5.1 down-mixing | ||
Built-in stereo audio DAC | ||
Built-in SPDIF/IEC958 and PCM serial digital audio input/output | ||
Supports concurrent audio stereo channel output with combination | ||
of analog+PCMo or I2S+PCM, Dolby vision | ||
Indicator | Digital Display | 7 Segment 4 Digit LED with Clock Display |

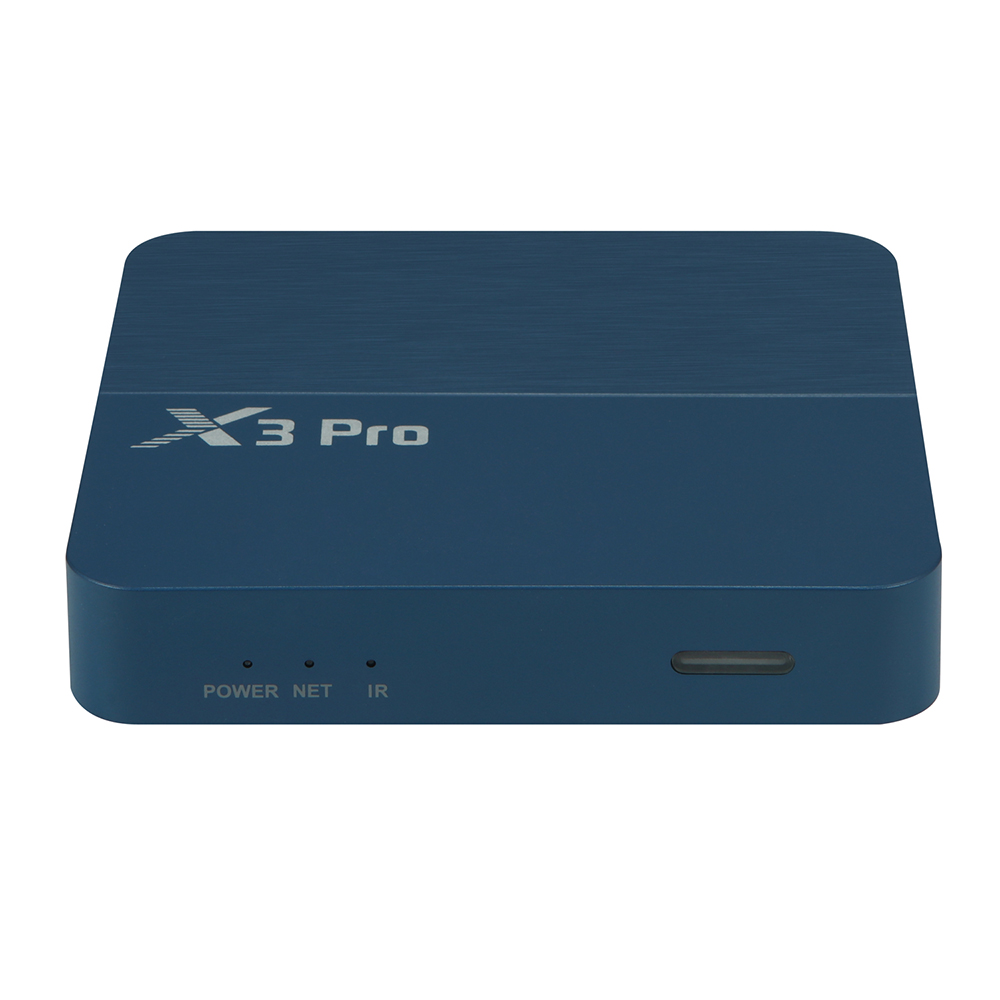

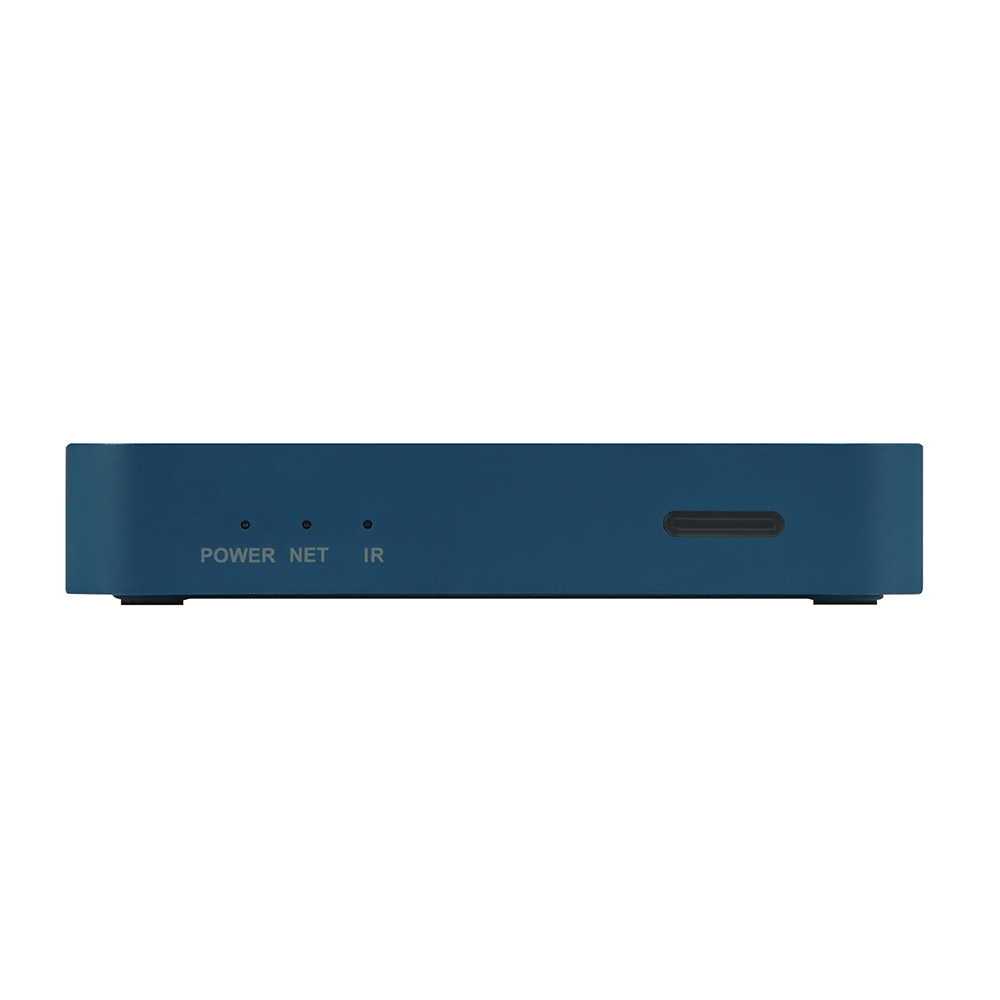

LED | 1*Power; 1*IR | |
OTA | Operating system updates(via USB port/TF Card Slot/OTA) | |

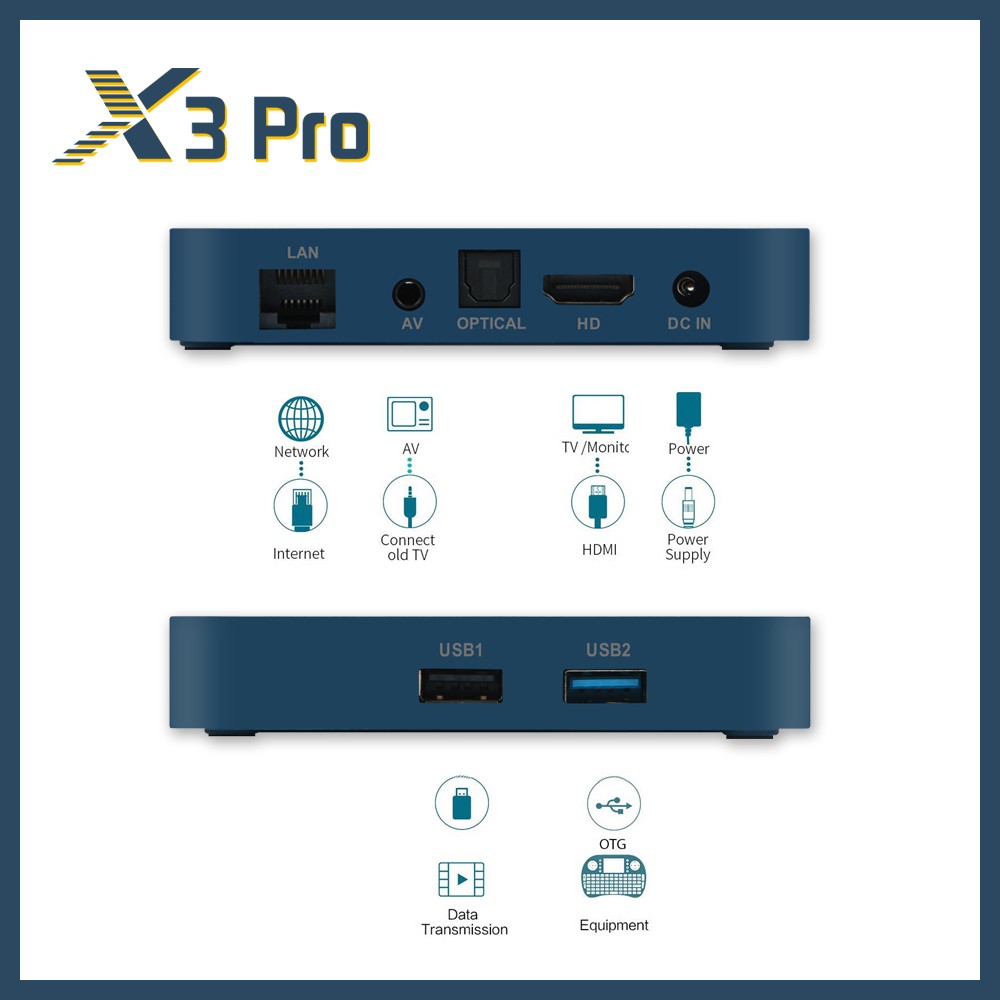

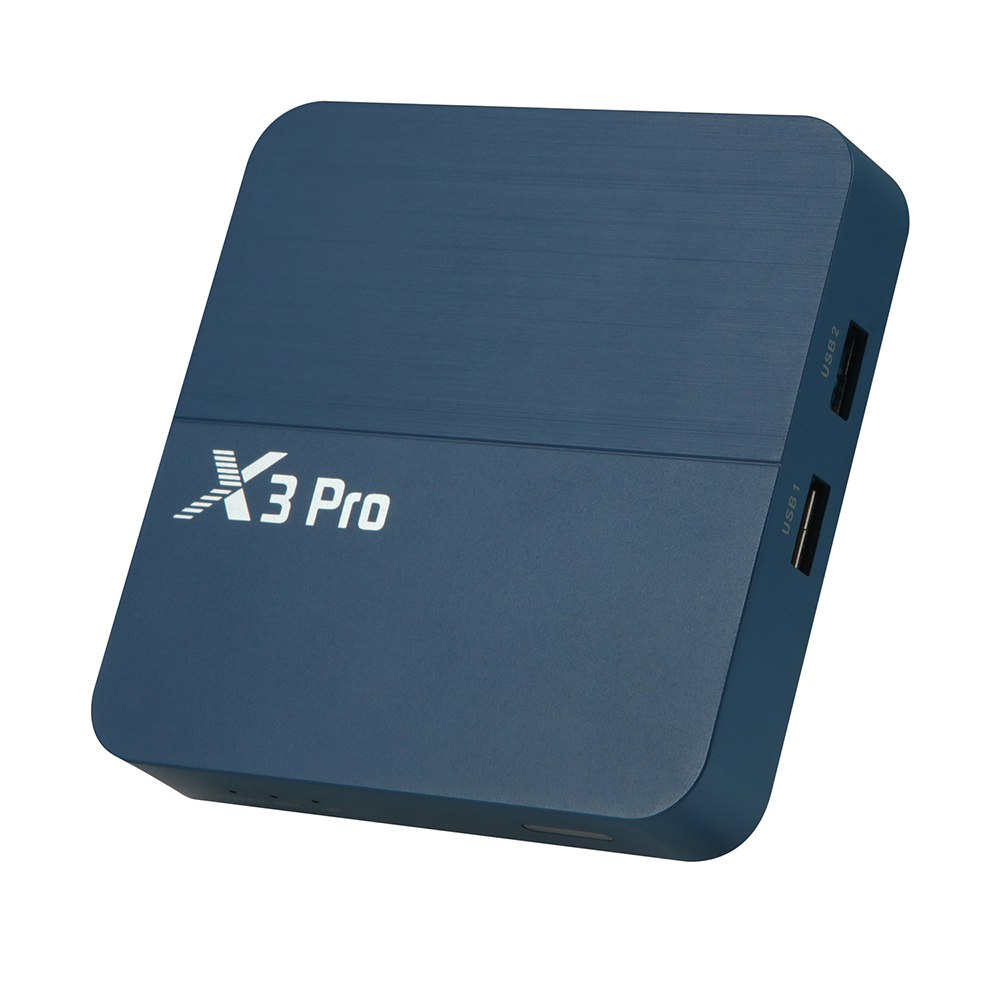

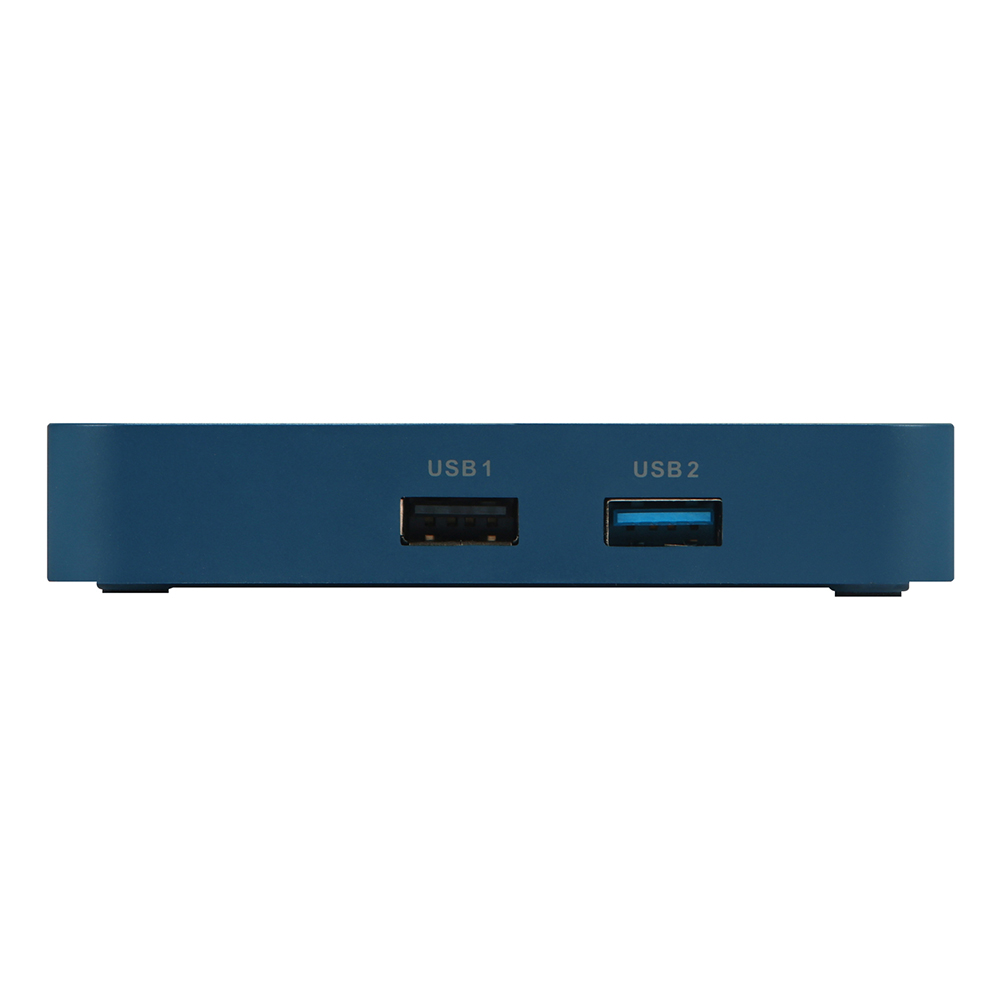

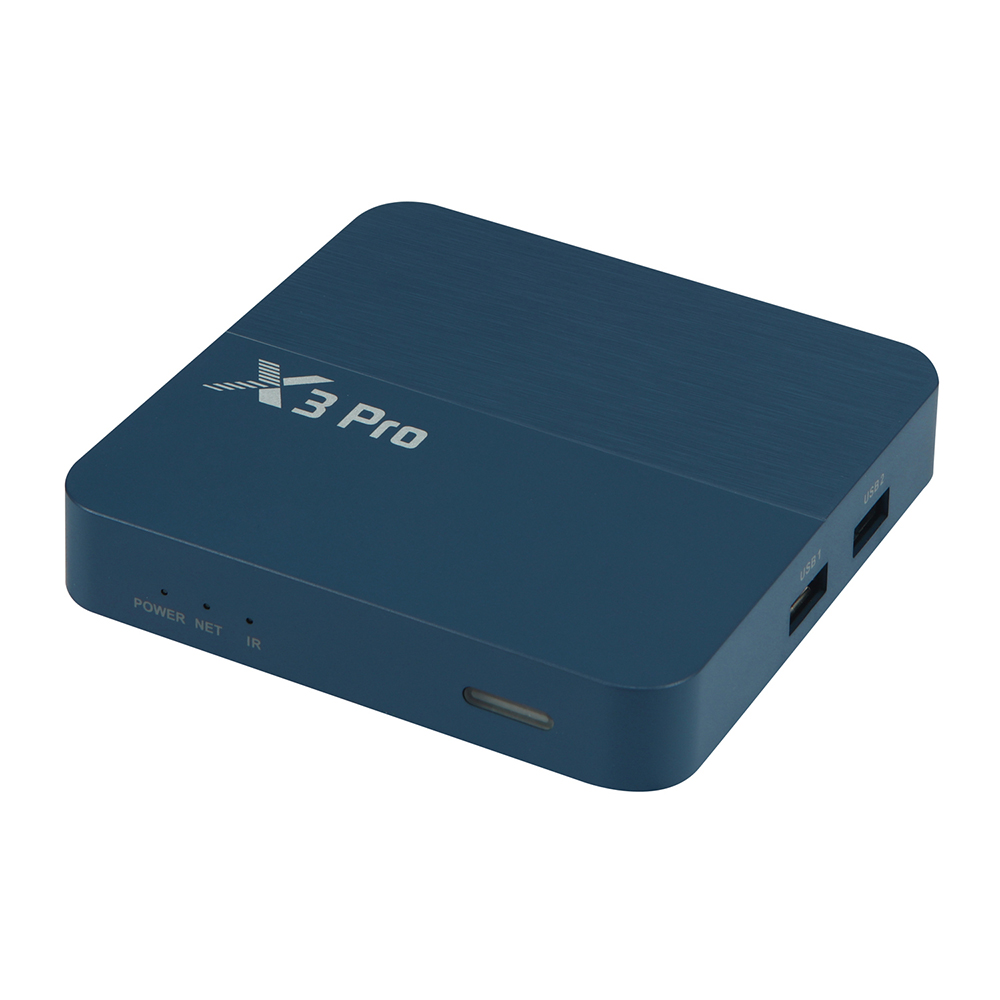

USB Ports | 1*USB 3.0; 1*USB 2.0 | |

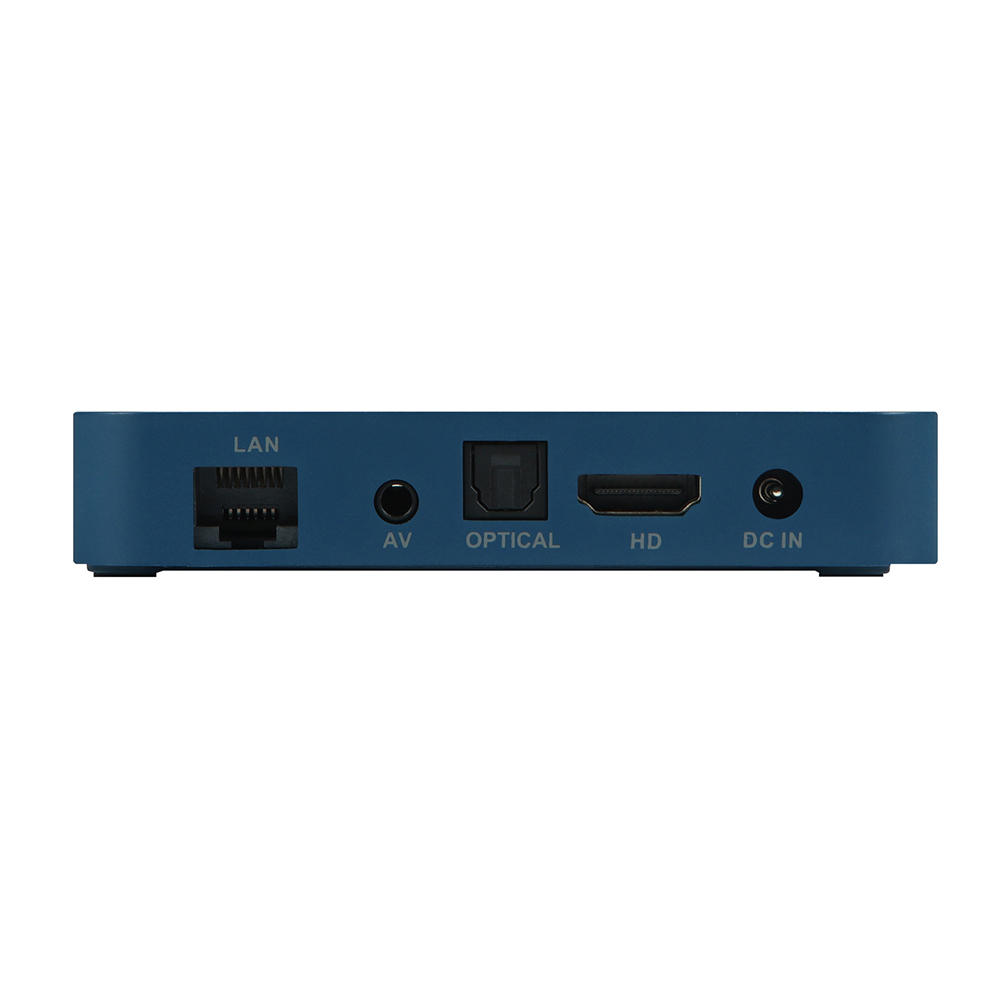

DC-in | 12V/1A DC in Jack | |
HDMI | HDMI 2.0b with CEC | |
AV | 1*AV out | |
SPDIF | 1*Optical (2CH, 5.1CH) | |
RJ45 | 1*10/100/1000 Ethernet | |
Card Slot | 1*Micro SD Card slot | |
Software Config. | OS | Android TV 9.0 Pie |
Language | Multi -language | |
Keyboard | Qwerty keyboard | |
Support | ||
UI | Support original ecology and customized UI | |
AI&IoT | IoT Home | Support Z-wave or Zigbee Module with Uart Port (Optional) |
AI Voice | Switch to AI Speaker when standby the TV Box (Optional) | |
Work Environment | ||
Storage Environment | -20°C--60°C，10%--90% Humidity | |

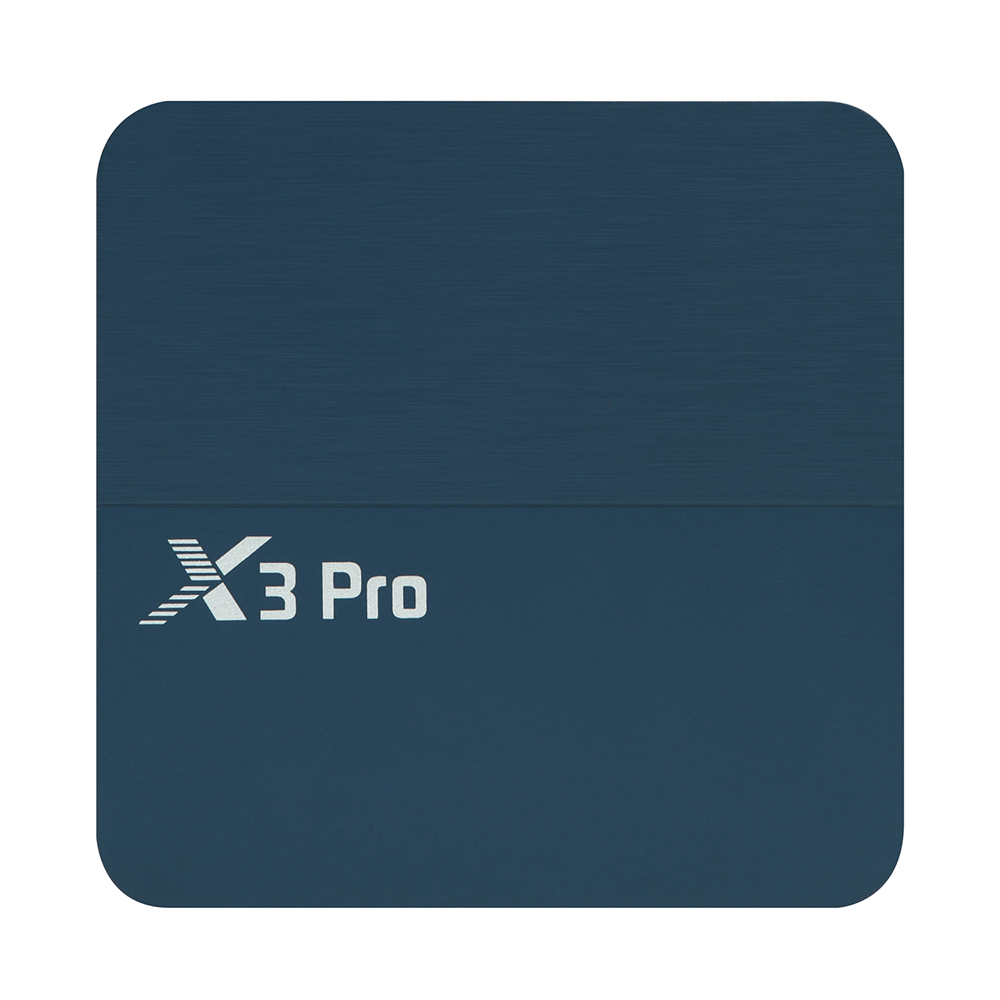

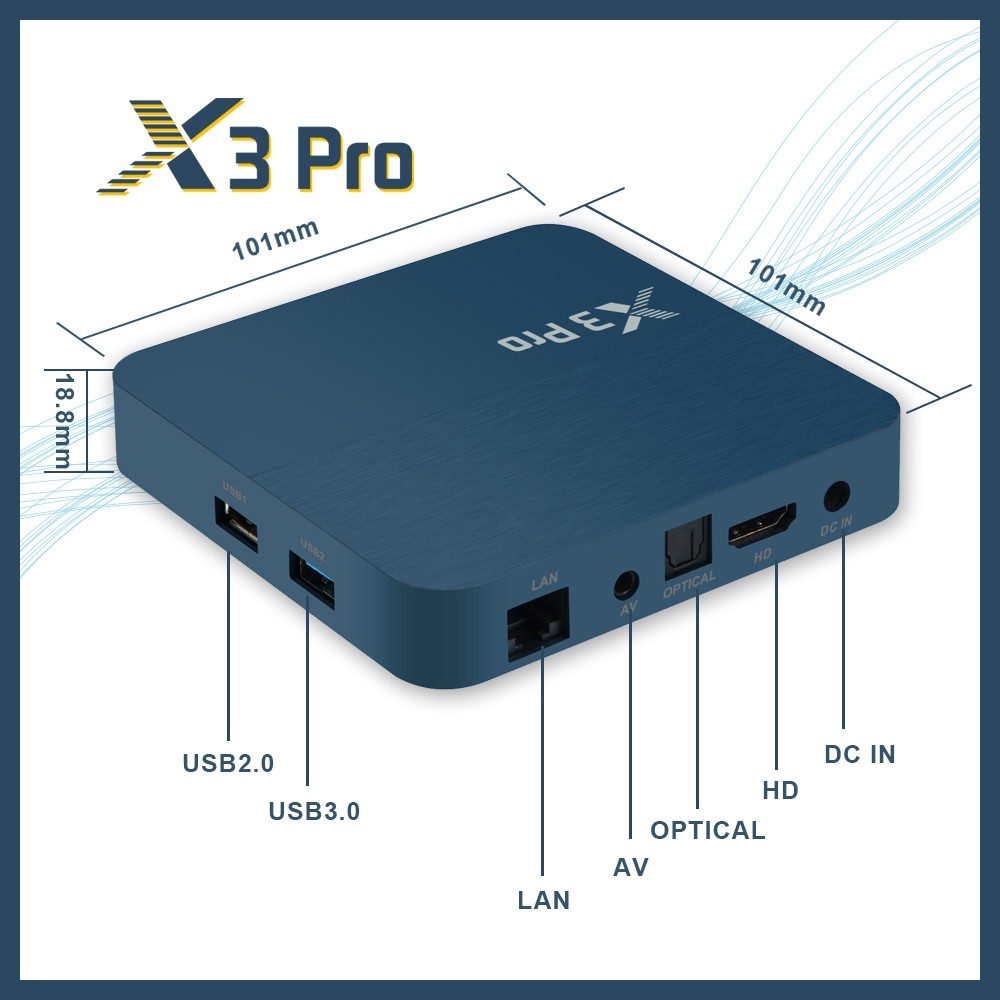

Dimension | 100*100*18mm | |
Accessories: Power Adaptor, HDMI Cable, A/V Cable, Gift Box,Remote Controller, User Manual. | ||
Optional Accessories: 1.5M Real 4K HDMI Cable, Bluetooth Remote Controller with Voice search. | ||
