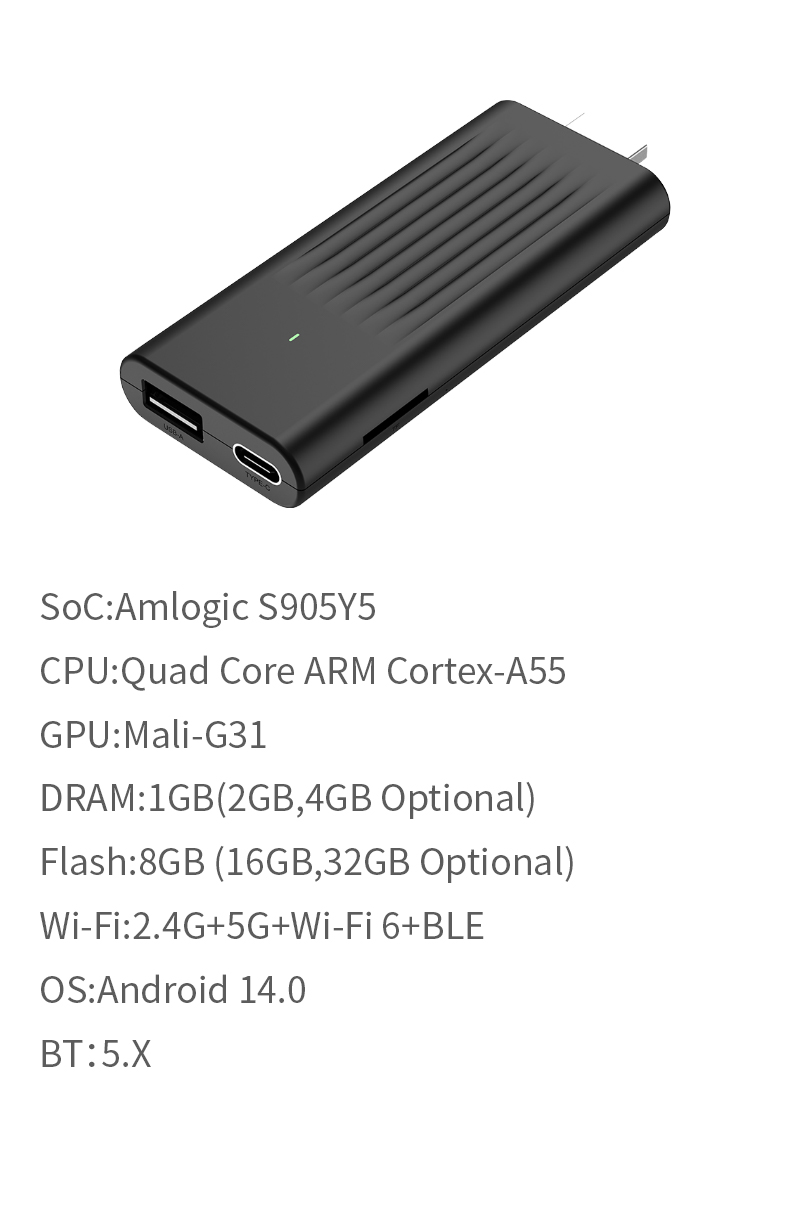

主控: Amlogic S905Y5
内存: LPDDR4 1GB (2GB,4GB Optional)
闪存: EMMC 8GB (16GB,32GB,64GB,128GB Optional)
操作系统: Android 14.0
Wi-Fi: 802.11 a/b/g/n/ac/ax(2.4G+5G WiFi6)
蓝牙: 5.0
Product center
产品中心
创新/品质/成本/服务
产品概况
产品参数
| Basic parameters | ||
| System | SoC:Amlogic S905Y5 | |
| CPU: Quad Core ARM Cortex-A55 | ||
| GPU: ARM Mali,Mali-G31,OpenGL ES 1.0/2.0/3.2,Vulkan1.2,OpenCL2.0 | ||
| DRAM: LPDDR4 1GB (2GB,4GB Optional) | ||
| Flash: EMMC 8GB (16GB,32GB,64GB,128GB Optional) | ||
| OS：Android 14 | ||
| Network | RJ45:N/A | |
| Wi-Fi: 802.11 a/b/g/n/ac/ax(2.4G+5G+WiFi6) | ||
| BT: 5.0 | ||
| I/O | ||

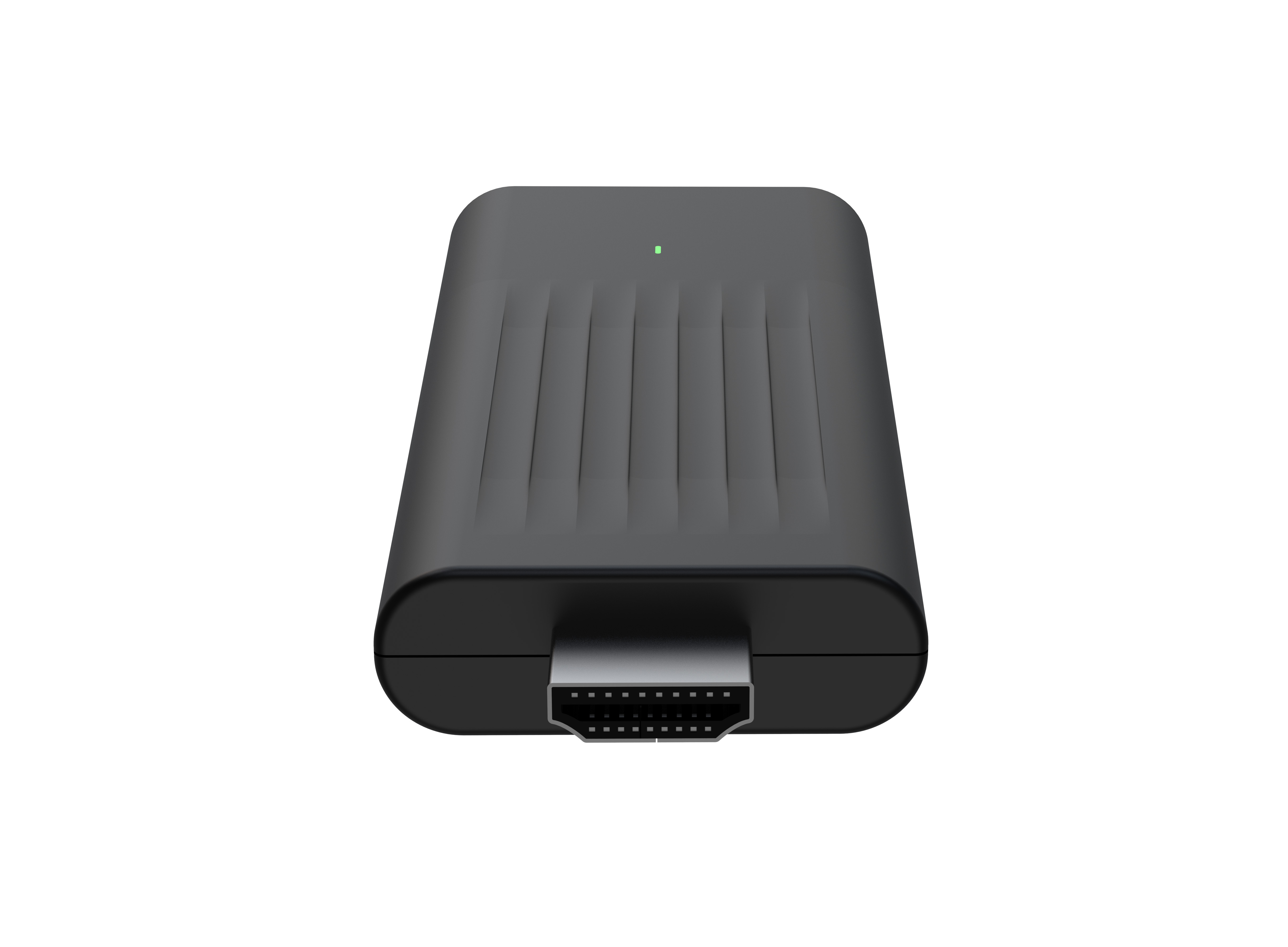

| Video/Audio Output | HDMI 2.1b | |

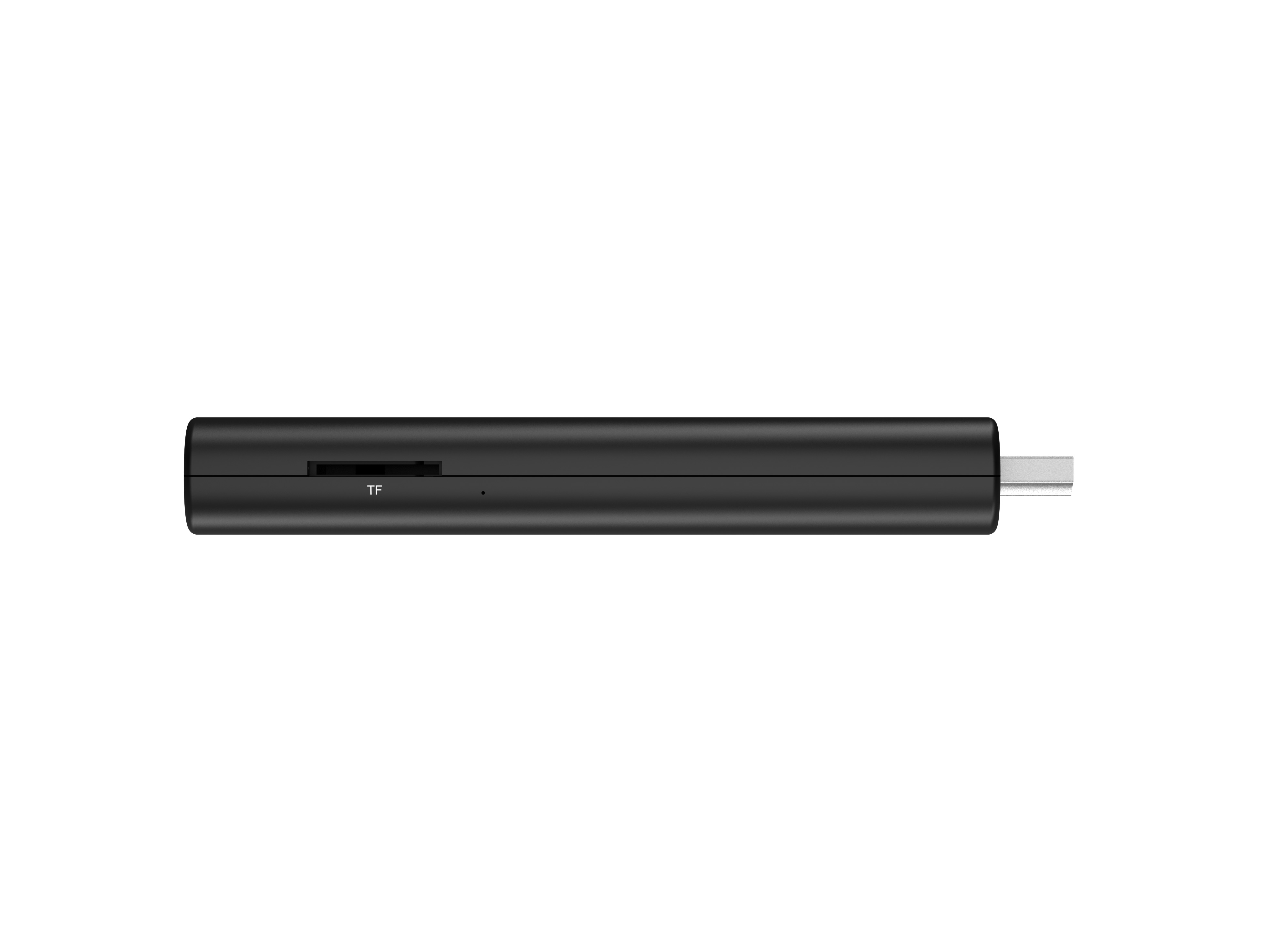

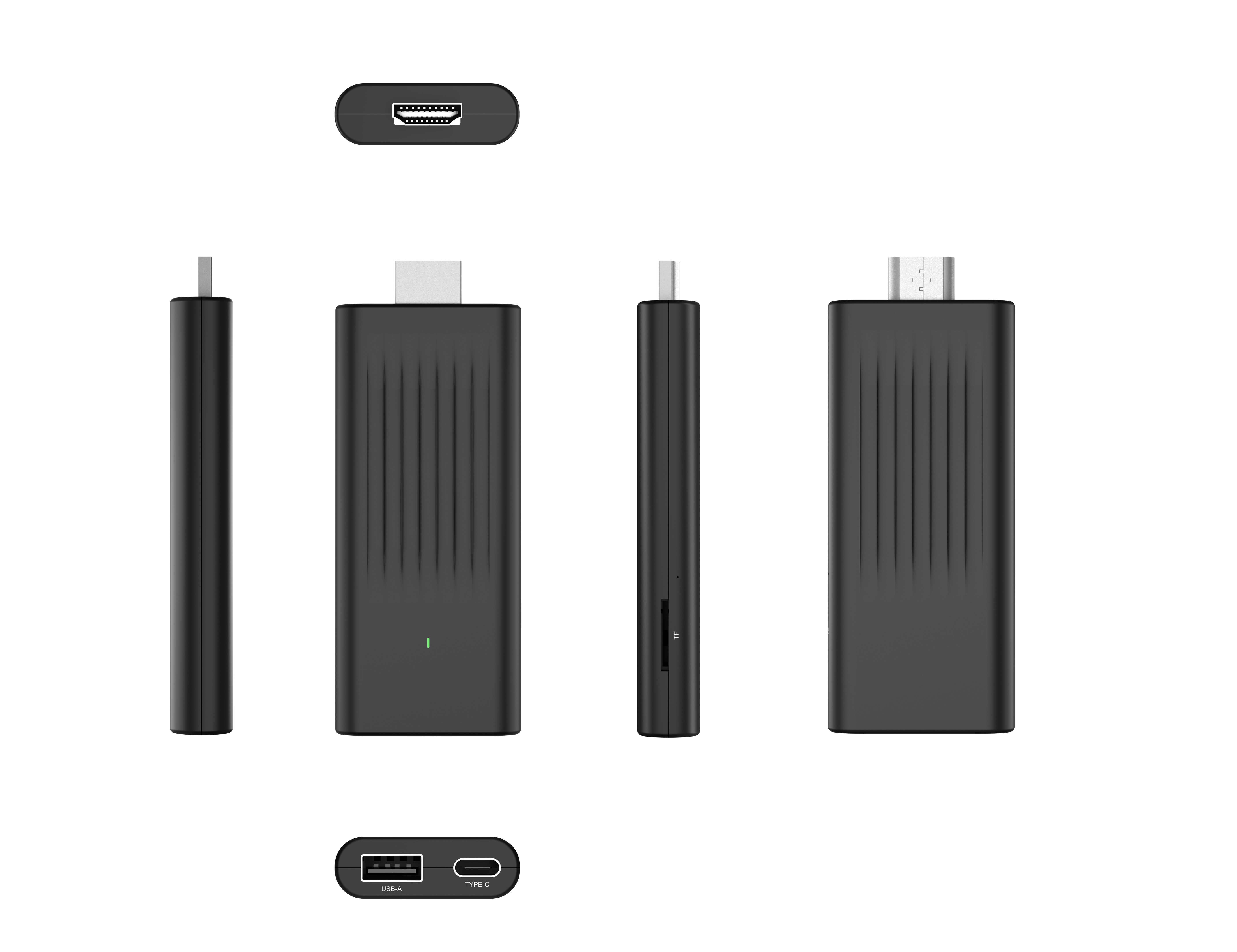

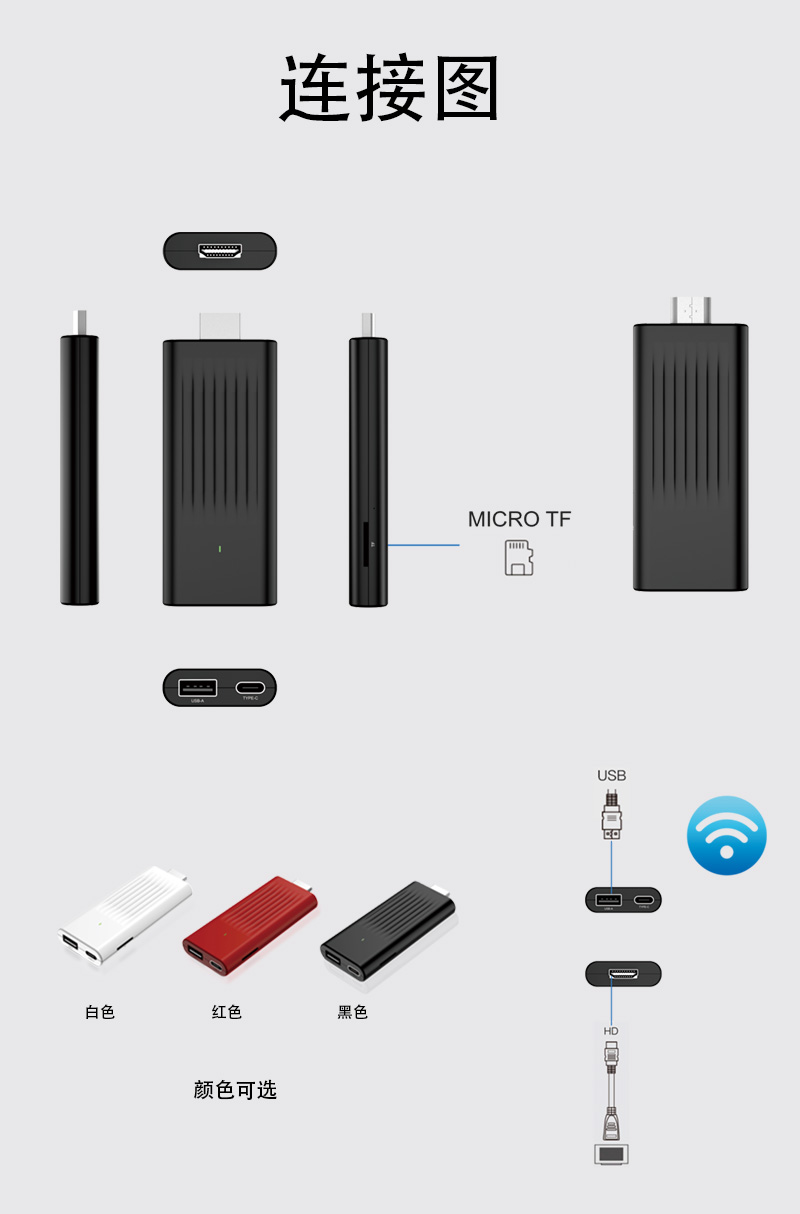

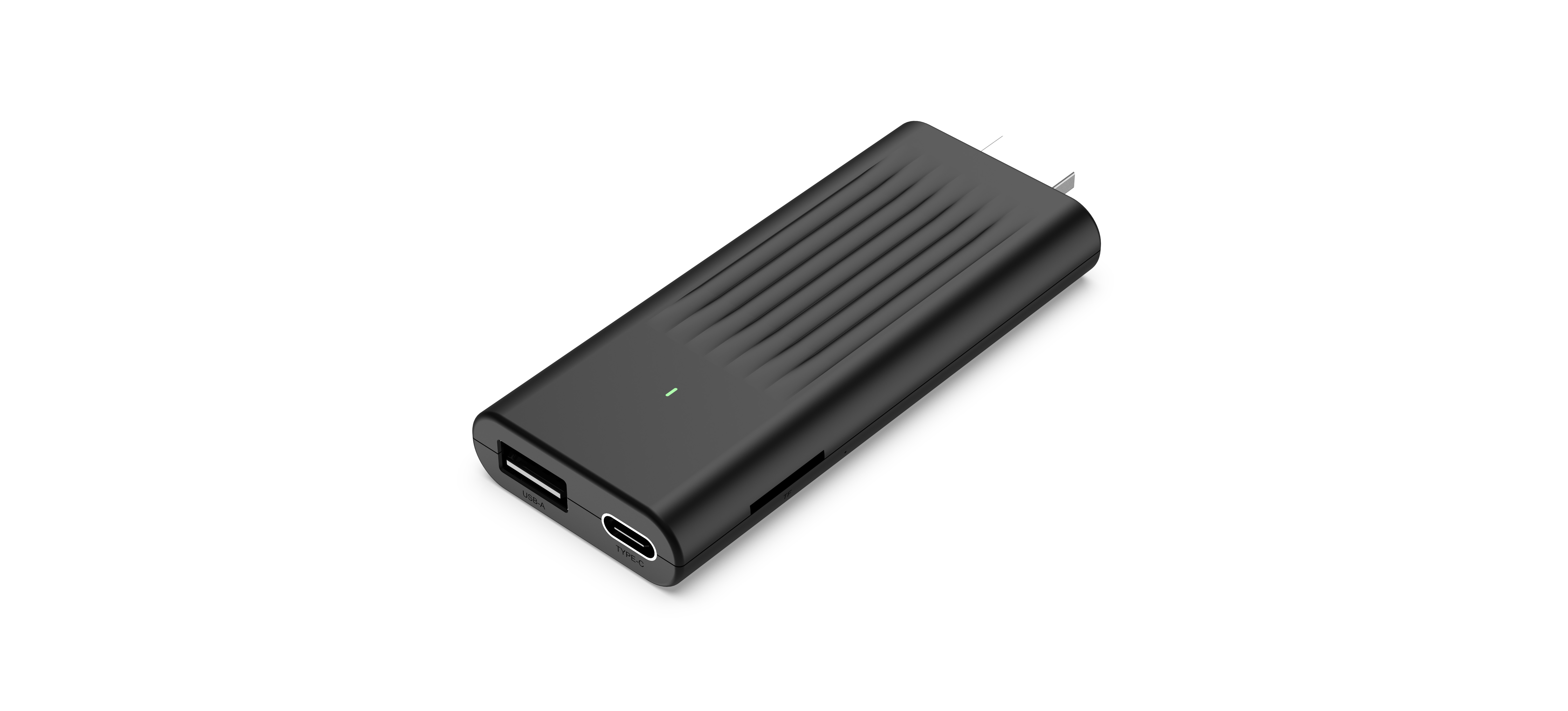

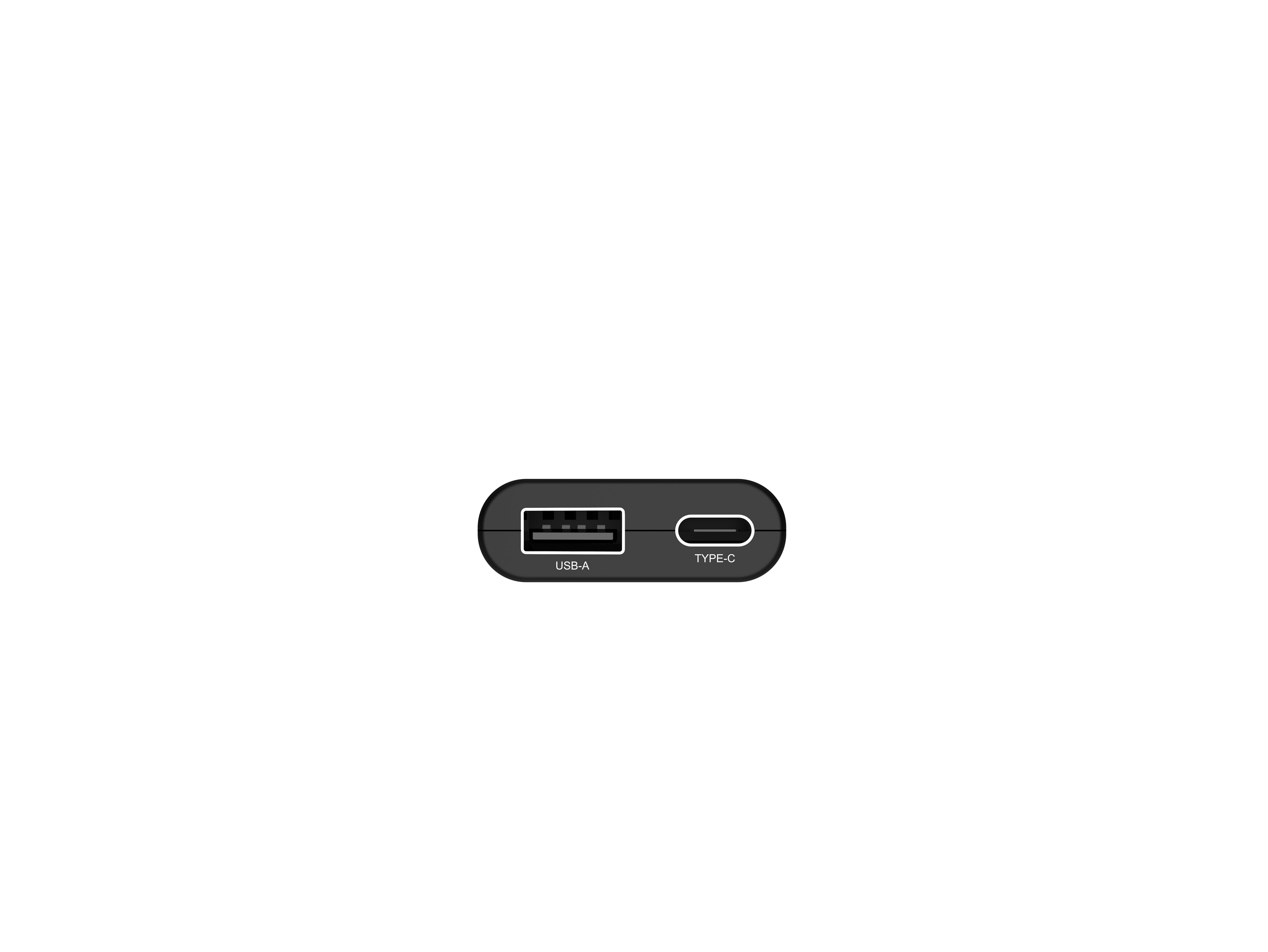

| Peripheral Interface | USB2.0 OTG x1，USB-TYPE-C x1(Power only)，TF CARD x1，update buttons | |
| Power Interface | DC 5V@1.5A(TYPE-C JACK) | |
| Other Interface | Bluetooth remote control | |
| Media | ||
| Video | Video/Picture Decoding AV1 MP-10@L5.1 up to 4Kx2K@60fps VP9 Profile-2 up to 4Kx2K@60fps H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps H.264 AVC HP@L5.1 up to 4Kx2K@30fps MPEG-4 ASP@L5 up to 1080P@60fps(ISO-14496) WMV/VC-1 SP/MP/AP up to 1080P@60fps MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) Multiple language and multiple format sub-title video support MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) Supports JPEG thumbnail, scaling, rotation and transition effects 9th Generation Advanced Amlogic TruLife Image Engine Supports HDR10+, HDR10, HLG HDR processing Motion compensated noise reduction and 3D digital noise reduction for random noise Block noise, mosquito noise, spatial noise, contour noise reduction Motion compensated and motion adaptive de-interlacer Edge interpolation with low angle protection and processing 3:2/2:2 pulldown and Video on Film (VOF) detection and processing Smart sharpness with SuperScaler technology including de-contouring, de-ring, LTI, CTI, de-jaggy, peaking Dynamic non-Linear contrast enhancement All dimension multiple regions smart color management including blue/green extension, flesh-tone correction, wider gamut for video 2 video planes and 2 graphic planes hardware composer Independent HDR re-mapping of video and graphic layer | |
| Audio | Supports MP3, AAC, WMA, RM, FLAC, Dolby Audio（Optional） , DTS（Optional） and programmable with 7.1/5.1 down-mixing | |
| Features | ||
| Network Streaming | HTML5, RTSP, HLS, Smooth streaming | |
| Multi-screen interactive | Miracast, DLNA and Airplay | |
| System Upgrading | Upgrading via USB disk or internet | |
| Local Media Playback | Video/Audio/Picture | |
| External Storage | USB storage max to 1TB (FAT16/FAT32/NTFS) | |
| Games | Android 2D/3D games | |
| APP | KODI(XBMC),Facebook, YouTube, Skype, Google play etc. | |
