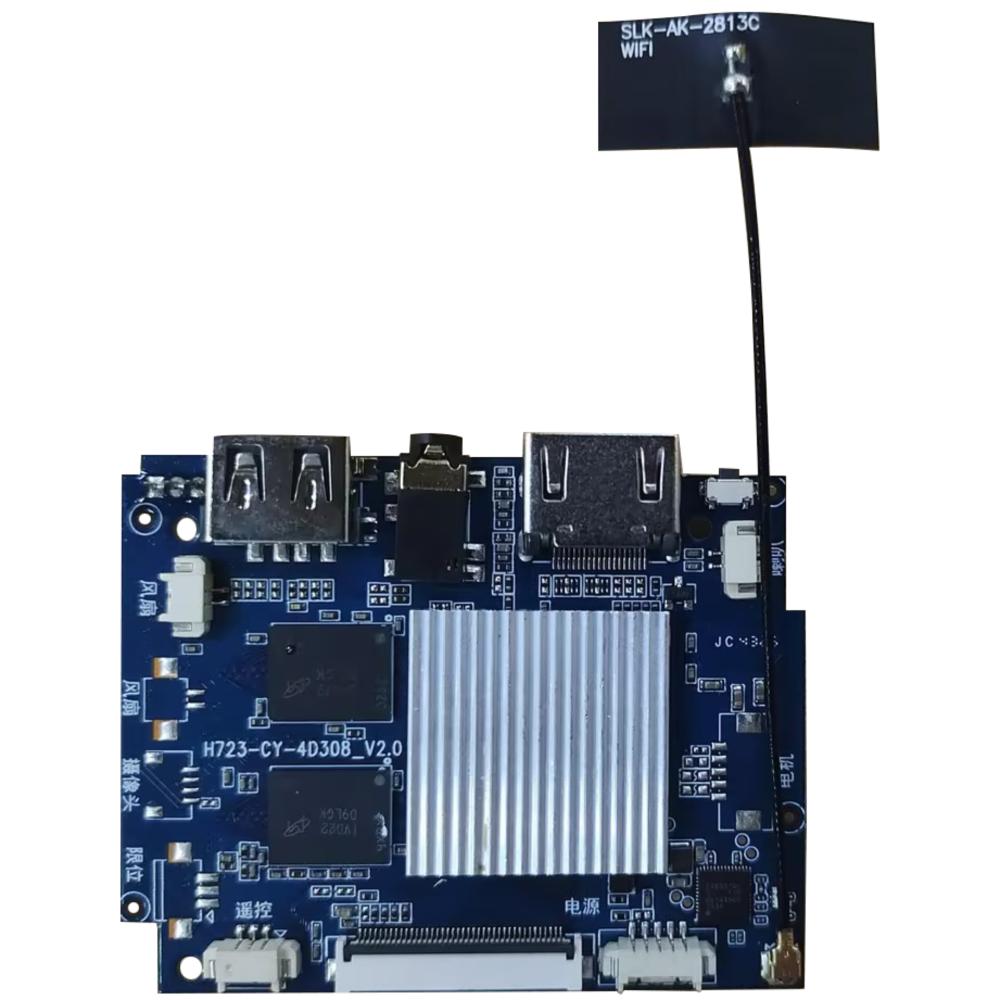

SoC: Allwinner H723
CPU: Quad Core ARM CortexTM-A53, 1.5GHz; Mali-G31 GPU
DRAM: 1GB（2GB Optional） DDR3-8bit*4
FLASH: 8GB(16GB Optional)
WIFI+BT: EA6521QF（802.11ax/ac/a/b/g/n 1T1R dual band Wi-Fi and bluetooth 5.0)
OS: Android 14.0
Interface: USB-OTG; HDMI-IN; earphones
Display: Support 34PIN 1980*1080 LVDS-8bit
Board Size: 67mm*52.5mm
Product center
Product center
INNOVATION/QUALITY/COST/SERVICE
Product profile

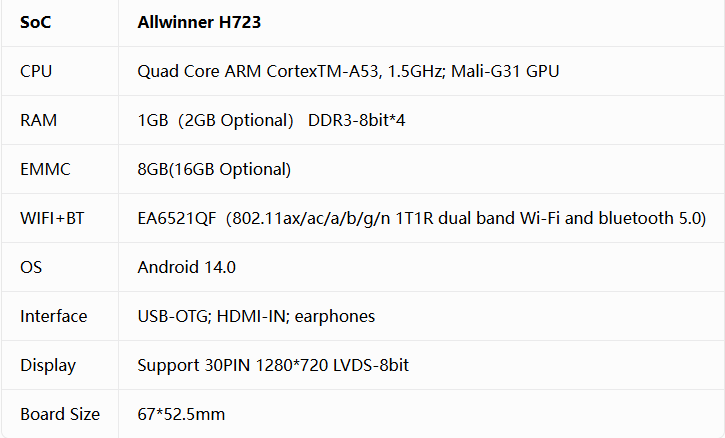

Product parameters
Pictures & specifications for reference only. Contact our sales team for details.
For product details, please consult the sales team.
